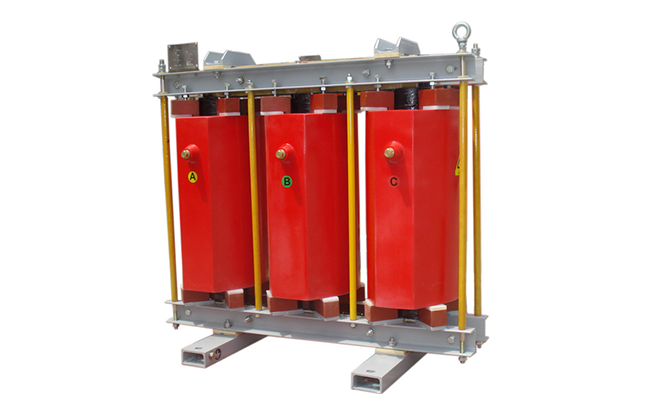

SC(B)H10系列非晶合金干式变压器

一、概述  Description

非晶合金干式变压器是响应国家节能降耗方针、政策及根据市场需要及时推出的节能产品，与同类型普通干变比较，其空载耗损仅为规定值的25%-30%，负载耗损为规定值的85%。可用于高层建筑、商业中心、地铁、机场、车站、工矿3企业和法电厂，特别适用易燃、易爆合防火要求高的场所。
SC(B) H10 Amorphous alloy dry transformer has been developed and made with ripe technology and it possesses excellent performance such as safe,reliable and environment. It reduces greatly loss of no-load and load loss,comparing the similar type transformer,the No loas loss descends 70%.The full load loss descends 15%.It is an idea product used for high-story building,shopping centre,subway,airport,bus station,factory and power plant. It is especially used for the place where it needs high flame retardant and flame proof.

二、产品标准

GB/T10228-1997(干式电力变压器技术参数和要求)
GB6450-86(干式电力变压器)
GB/T17211-1998(干式电力变压器负载导则)
IEC60076-119国际电工委员会标准-干式电力变压器）

三、型号及其含义

电压等级kv         H,V.Voltage(KV)
额定容量kva        RatedCapacity(KVA)
性能水平代号       PerformanceLevel
非晶合金铁心      Amorphous Metal Core
低压箔式绕组      Low Voltage Foil Coil
固体成形绝缘      Cast Resin Dry Type
三相变压器        Three Phase

四、结构与性能

本产品低压为箔式线圈，采用铜箔绕制，抗短路能力强；高压线圈用H级高强度漆包线绕制，采用玻璃纤维加强的环氧树脂包封结构，具有优良的耐潮河抗裂性能。
铁心有非晶合金带材卷制而成，采用矩形截面、四框五柱式结构。低耗损、低局放、节能效果好。
The low voltage coil is of foil winding structure,having a remarkable anti-short-circuit capability; its high voltage coil is of envelope type and is of grade-H moulded insulation Copper, it features admirable Three Proofing performance and crack-performance free;The core is fabricated with amorphous metal alloy strip in a rectangular section and four-frame five-column structure,with low loss,low partial charge and energy saving.
