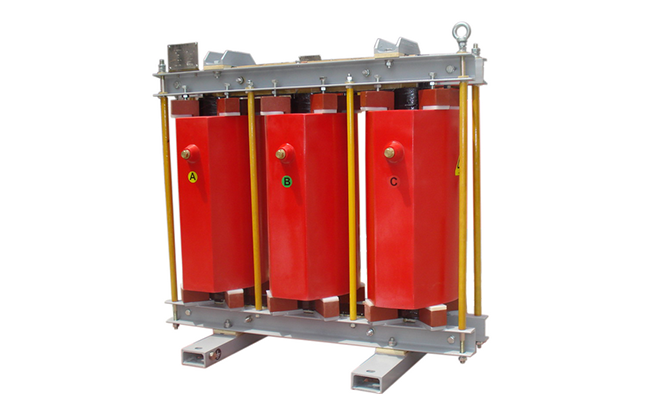

ZSG系列干式整流变压器

一、概述

ZSG系列三相干式整流供整流设备、整流后作充电、电压调节及直流之用。
ZSG series three phase dry transformer supply rectification equipment used to charge regulate voltage and D.C power supply.

二、产品标准

GB/T10228-1997《干式电力变压器技术参数和要求》
GB6450-1986《干式电力变压器》
GB/T17211-1998《干式变压器负载导则》
IEC60076-11《国际电工委员会标准—干式电力变压器》

三、型号及其含义

电压等级KV  Voltage  class
额定容量KVA  Rated  capacity
干式          Dry transformer
三相          Three phase
整流         Rectification


四、结构与性能

该系列产品特点是低电压，大电流，条件接范围广，适用于化工、冶金、牵引、储电池充电、电力灯和交通电车等。
变压器的阻抗足够大，二次电流大，电压较低，具有规格根据客户需要来设计。
It is low voltage and high current with extensive adjusting range, which can be used for chemicals, metallurgical industry and city communications.
The iron core is made of high quality cold silicon sheet, the primary and secondary windings are wound in cylindrical type or continuous type form according to different capacity.
It can be designed and made according to user’s requirements.
