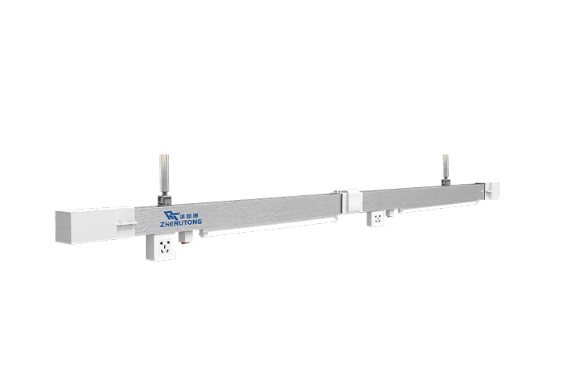

Q型铝合金外壳供电照明母线槽
产品概述 Product Overview
如通七级铝合金外壳供电照明母线槽，安全、美观。铝合金外壳，PVC 内管，内穿7 铜排，下面五三相四线或三相五线动力供电，上面二单相照明供电。或下面五单相动力火线分流供电，上面二单相照明供电。该母线额定电流18A 至100A，IP30 防护等级达到国内高水平，保证了系统在不同环境条件下稳定、安全地运行。广泛适用于服装、鞋帽、电子车间、地下停车场、超市等场所的供电照明。
RUTONGQ Type PVCPower and LightingBusbar Trunking System,insulated by PVC insulation, is safe and aesthetic.It has 7 copper strips, lower 5 copper strips for three-phase power supplying(three-phase four-wire or three-phase five-wire system), or for single-phase power supplying through equal current distribution,while the upper two copper strips for lighting. With rated current ranging from 18A to100A,IP30 protection grade,it enables safe and stable performance in different circumstances, thus has been widely used in garment, footwear and headwear, and electronic factories, as well as underground parks and supermarkets.
产品特点 Product Features
● 母线槽外壳采用铝合金型材，重量轻，耐腐蚀，稳定性强。
● 型材结构合理，可实现2m 以下大跨距安装，还可作为小型照明设备的安装支架。
● 母线槽每隔400mm 设置一插口，插接箱时可带电插接。
● 采用积木式结构，具有快速、可靠的电气和机械连接件性能。
● 高防护等级：IP54。
● 安装灵活方便。
● 插接箱内根据用户要求对安装开关或熔断器
● The busway enclosure is constructed from aluminum allo y profiles, offering lightweight, corrosion resistance, and high stability.
● The rational structural design enables large-span installations of up to 2 meters and can also serve as a mounting bracket for small lighting fixtures.
● Tap-off openings are provided every 400 mm along the busw ay, allowing live insertion of tap-off boxes.
● A modular block structure ensures fast and reliable electrical and mechanical connections.
● High protection rating: IP54.
● Flexible and convenient installation.
● Circuit breakers or fuses can be installed inside the tap-off boxes according to user requirements.
