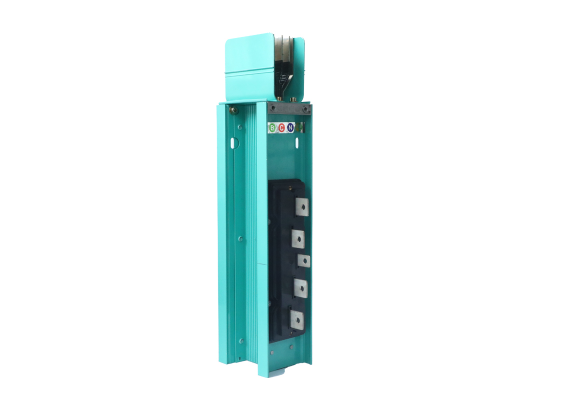

耐腐密集型母线

产品概述 Product Overview

耐腐蚀密集母线的紧凑设计使其适合安装在空间有限的场所。尽管占地面积小，这些母线可提供强大的电气性能，在充满挑战的条件下稳定供电。母线表面经过涂层处理，采用环氧树脂与氟碳双层防护体系，增强其防腐性能，能承受超过3000 小时的盐雾测试，进一步延长其在恶劣环境下的使用寿命和可靠性。其导体采用高纯度电解铜，绝缘层使用耐高温复合材料，在-40℃至+120℃温度范围内保持稳定的介电性能。

耐腐蚀密集母线的主要特点之一是其高强度连接器，采用镀银接触表面与扭矩控制结构，可连接安全可靠。这种设计限度地降低了接触电阻和发热的风险，接触电阻值低于0.1mΩ，连接处温升控制在55K 以内，有助于提高配电系统的整体安全性和效率。无论是在化工厂、海上平台还是废水处理设施中，即使在具腐蚀性的环境中，这些母线也能为输配电提供可靠的解决方案。其模块化设计支持快速安装与扩展，大幅缩短工程周期。

耐腐蚀密集型母线是保证腐蚀工业环境下不间断供电的重要组成部分。其高强度铝合金结构、的防腐处理、紧凑的设计和可靠的连接器使它们成为要求苛刻的应用的终解决方案。母线槽内部采用全绝缘设计，配备智能监控系统可实时监测运行状态。这些母线凭借其优异的耐腐蚀性和长期稳定的电气性能为在充满挑战的环境中运行的设备提供可靠、高效的配电解决方案，供电系统在端条件下仍能保持超过20 年的稳定运行寿命，广泛应用于半导体工厂、海上风电平台等对供电可靠性要求的场所。

Corrosion-Resistant Compact Busway The compact design of corrosion-resistant compact busways makes them suitable for installation in space-constrained locations. Despite their small footprint, these busways deliver robust electrical performance, ensuring stable power supply under challenging conditions. The busway surface is treated with a special coating system, utilizing an epoxy resin and fluorocarbon double-layer protection, which enhances its corrosion resistance and withstands over 3,000 hours of salt spray testing, further extending its service life and reliability in harsh environments. The conductors are made of high-purity electrolytic copper, and the insulation layer employs high temperature resistant composite materials, ensuring stable dielectric performance within a temperature range of -40° C to +120° C.

One of the key features of corrosion-resistant compact busways is their high-strength connectors, which incorporate silver-plated contact surfaces and a torque-controlled structure to ensure secure and reliable connections. This design minimizes the risk of contact resistance and overheating, with a contact resistance value below 0.1mΩ and a temperature rise at connection points controlled within 55K, thereby enhancing the overall safety and efficiency of the power distribution system. Whether in chemical plants, offshore platforms, or wastewater treatment facilities, these busways provide a reliable power transmission and distribution solution, even in the most corrosive environments. Their modular design supports quick installation and expansion, significantly reducing project timelines.

Corrosion-resistant compact busways are essential components for ensuring uninterrupted power supply in corrosive industrial environments. Their high-strength aluminum alloy structure, specialized anti-corrosion treatment, compact design, and reliable connectors make them the ultimate solution for demanding applications. The busway interior features full insulation design and is equipped with an intelligent monitoring system for real-time operational status tracking. With their exceptional corrosion resistance and long-term stable electrical performance, these busways provide reliable and efficient power distribution solutions for equipment operating in challenging environments. They ensure the power supply system maintains a stable operational lifespan of over 20 years under extreme conditions and are widely used in semiconductor manufacturing plants, offshore wind power platforms, and other sites with stringent power reliability requirements.
