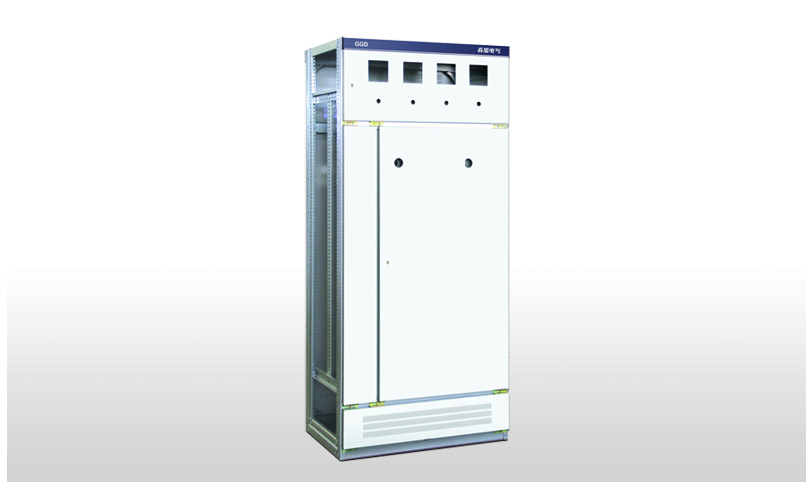

GGD低压开关柜

Low voltage switch cabinet

概述 General

GGD低压固定式开关柜适用于发电厂、变电站、工矿企业等电力用户作为交流50Hz额定工作电压380V，额定工作电流3150A的配电系统中，作为动力、照明及配电设备的电能转换、分配与控制之用。产品具有分断能力高，动热稳定性好，适用性能强等特点。产品符合GB7251.1、GBT/23359、JB/T9661 等相关标准。

GGD low-voltage fixed switchgear is applicable for power station, transformer substation and industrial and mining enterprises with distribution system of 50Hz AC, 380V rated working voltage, 3150A rated working current for electrical energy conversion, distribution and control of power, ilumination and distribution equipment. The product has high breaking capacity, sound dynamic- thermal stability and strong applicability. The product meets GB7251.1, GBT/23359, JB/T9661 and relevant standards.

结构说明  Structure Description

柜架用新型8MF冷弯型钢材拼装而成，其刚性及承载能力均达到电器元件的安装要求，高低压开关柜厂家框架上分别有按E=20mm和E= 100mm数排列的安装孔，以提高产品的装配的通用性。主母线排列在柜的上部，采用的ZMJ型母线夹为积木式组合结构，用高阻燃PPO材料热注成型，机械强度和绝缘度高，能承受有效值50kA，峰值105kA电流，热稳定冲击力长期允许温度可达120C。

The frame is assembled by new type 8MF cold-bend steel with rigidity and bearing capacity meeting installation requirement of electrical components. Installation holes of E=20mm and E=100mm are provided on the frame toimprove the assembly and universality of products. Main bus is arranged on the top of the switchgear adopting ZMJ-type bus clamp in the structure of block combination. It is molded by high flame-resistance PPO material through thermal injection with high mechanical strength and insulation degree, and can bear current with effective value of 50kA and peak value of 105kA. The long-term allowable temperature of thermal stability impact force can reach 120%℃.

主要特点  Main Features

1、框架为组合式结构，基本骨架采用新型免焊接8MF型钢组成;

2、主体框架可采用镀锌板或敷铝锌板加工，更加环保、省时高效;

3、柜体防护等级为IP3X。

1. The frame is in combined structure with the main frame made of new-type welding-free 8MF steel;

2. Main frame can be processed by galvanized plate or aluminum zinc plate to be more environmentally friendly, time saving and efficient.

3. Switchgear protection grade is IP3X;
