FZ-YJV铜芯交联聚乙烯绝缘聚氯乙烯护套预制分支电缆
- 厂家信息
- 产品信息
- 规格参数
- 技术文档

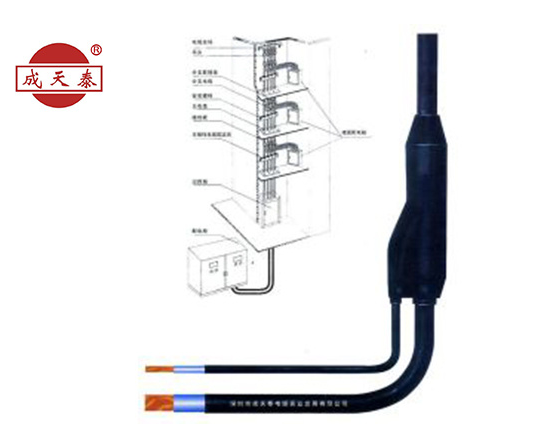

产品图片
包含：普通型、阻燃型（ZR）、耐火型(NH)
分支电缆
预分支电缆主要有主干电缆、分支线、分支接头、相关附件组成，并具有三种类型：普通型、阻燃型(ZR)、耐火型(NH)。
预分支电缆是高层建筑中母线槽供电的替代产品，具有供电可靠、安装方便、防水性好，占建筑面积小、故障率低、价格便宜、免维修维护等。
预分支电缆是为配合城市高层建筑供电系统而开发的成套产品，主要用于高层建筑。
产品型号及名称 TYPE & TITLE
| 型号Type | 名称Title | |||||
| FZ-YJV | 铜芯交联聚乙烯绝缘聚氯乙烯护套预制分支电缆 | |||||
| Cu conductor XLPE insulated PVC sheathed prefabricated branch cable | ||||||
| Z-FZ-YJV | 铜芯交联聚乙烯绝缘聚氯乙烯护套阻燃预制分支电缆 | |||||
| Cu conductor XLPE insulated PVC sheathed flame-resistant prefabricated branch cable | ||||||
| WDZ-FZ-YJV | 铜芯交联聚乙烯绝缘无卤低烟聚烯烃护套阻燃预制分支电缆 | |||||
| Cu condutor XLPE insulated low smoke halogen free PE sheathed flame-resistant prefabricated branch cable | ||||||
| FZ-VV | 铜芯聚氯乙烯绝缘聚氯乙烯护套预制分支电缆 | |||||
| Cu core PVC insulated PVC sheathed prefabricated branch cable | ||||||
| Z-FZ-VV | 铜芯聚氯乙烯绝缘聚氯乙烯护套阻燃预制分支电缆 | |||||
| Cu core PVC insulated PVC sheathed flame-resistant-prefabricated branch cable | ||||||
| N-FZ-YJV | 铜芯交联聚乙烯绝缘聚氯乙烯护套耐火预制分支电缆 | |||||
| Cu core XLPE insulated PVC sheathed PVC sheathed fire-resistant prefabricated branch cable | ||||||
主要技术参数Main Technical Parameter
| 主干电缆标称截面 | 分支电缆标称截面 | ||||||||
| main cable cross section(mm2) | Branch Cable Cross-section (mm2) | ||||||||
| 35 | 10 | 16 | 25 | - | - | - | - | - | - |
| 50 | 10 | 16 | 25 | 35 | - | - | - | - | - |
| 70 | 10 | 16 | 25 | 35 | - | - | - | - | - |
| 95 | 10 | 16 | 25 | 35 | 50 | - | - | - | - |
| 120 | 10 | 16 | 25 | 35 | 50 | 70 | - | - | - |
| 150 | 10 | 16 | 25 | 35 | 50 | 70 | - | - | - |
| 185 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | - | - |
| 240 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | - |
| 300 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| 400 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| 500 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| 630 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
订货须知 Ordering Information
为了更好的设计您的预制分支电缆，请用户提供以下资料：
In order to better design your prefabricated branch cable, please provide the following information：
【建筑物类别】：高层建筑，体育场馆、公路等。
Building Category:high buildings,stadiums,roads.etc.
【建筑物构造】：建筑物配电系统图，预制带分支电缆的布置。
Building Construction：building power distribution system maps,prefabricated branch cable layout.
【配电方式】：单相双线、单相三线、三相三线、三相四线、三相五线制。
Distribution method:single-phase two –wire,single-phase three-wire,three-phase three-wire,three-phase four-wire,three-phase five-wire.
【预制带分支电缆】：电缆型号、主干及分支电缆的截面、各分支连接盒间距离、主干电缆长度，分支电缆长度等。
Prefabricated branch cable:cable type,the section of main and branch cables,the distance between the branch junction box,length of main cable,length of branch cable.
【敷设方式】：由楼顶上拉下或从地面拉上楼顶。
Installation method:pull down from the roof to ground or pull up from the ground to roof.
【 上端支撑】：用或不用电缆悬吊装置、电缆夹紧装置。
Support of top: with or without cable suspension device,cable clamping device.
【 附件】：夹具、托架等。Accessories clamps,brackets,etc.
【电缆盘具】Cable tray.
【其他要求】Other requirements.
