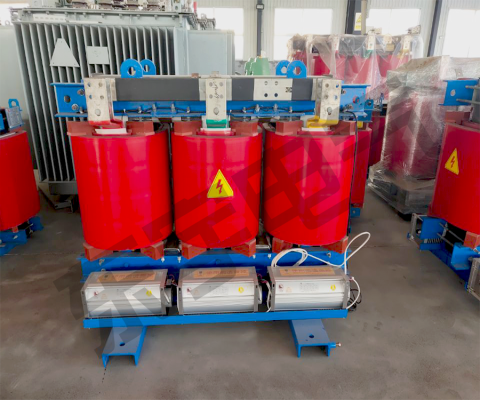

SC(B)10-30～2500树脂绝缘干式电力变压器
产品说明
箱式线圈：低压绕组采用整段铜箱，连同F级的匝绕缘在专用低压箱绕机上绕制，箱式线圈较好地解决了低电压，大电流线圈绕产品短路应力大，安匝不平衡，散热效果差，存在绕制螺旋角，人工焊接质量不稳定的突出问题。同时我公司绕组端部用树脂灌封，固化成形，防潮防污，引线铜排经氩弧焊自动焊接。
温控装置: 变压器采用BWDK系列信号温度计，测温元件埋设在低压线圈上半部，可自动检测并巡回显示相线圈各自的工作湿度。并且有超温报警和跳闸功能。
Box coil：low voltage winding adopts segmental copper foil,along with F grade in the low-pressure foil insulation turms on special around the system.Foil type coils has solved the low voltage,large current coil short-circuit stress around the product,Ann circle imbalance,cooling effect is poor,exist around the system spiral angel,artificially welding quality unstable outstanding problems.
At the same time company winding ends potting with resin. curing forming,moistureproof antifouling.Fuses copper platoon diameter argon arc welding automatic welding
Temperature control device: transformer USES BWDK series Temperature sensor signal thermometer,buried in the low-pressure coil,upper automatic detection and touring show phase of their respective working temperature coiI and overtemperature alarm and tripped function.
●安全、难燃防火，无污染.可直接安装在负荷中心。
●免维护、安装简便、综合运行成本低。
●防潮性能好，可在100% 湿度下正常运行，停运后不经预干燥即可投入运行。
●损耗低，局部放电量低、噪音小、散热能力强，强迫风冷条件下可以150%额定负载运行。
●配备有完善的温度保护控制系统，为变压器安全运行提供可靠保障。
●可靠性高。据对已经投入运行的产品的运行研究，产品的可靠性指标已经达到国际先进水平。
●Safety fire-proof nopollution it can be directly installed in load center.
●Maintenance-free conveniently installed, low compound running cost.
●Humidity-resistant it can normally operate bellow 100% tempreture no need predrying after stopping running and immdidtely running.
●Low loss local discharge capacity and noise，strong heatscattering capacitv，It can run With 150% rated load under the condition of forced wind-cooling
●Fitting With prefecting tempreture protection control system to supply reliable reliable safe-guard for safe running of transformer
●High rellability.Reliablity target of products have been confirm to international advance level.
